• TECHNICAL SPECIFICATION

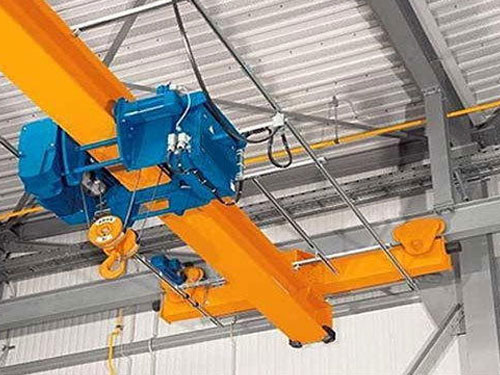

  The Under slung single girder cranes are very similar to overhead travelling cranes except that their end carriages are hung below the gantry girders made of I section. The Crane end carriages are hung below the shop I Beam. The Long travel wheels move on the beam flanges and the beam girder is supported below the end carriages. The Under Slung Cranes can also be supplied with overhang (girder extending beyond crane span) on one side or both the sides as per the requirement of customer. Typically, Underslung Overhead cranes range from 250kg to 10MT. However higher capacity Underslung Cranes can also be manufactured as per your requirements. These cranes come in handy where there is less space. Our Underslung cranes provide an optimal solution where building structures make the normal travelling cranes less suitable.

The main feature is that the crane track is not fastened to pillars but to the beams of the building. Our cranes are characterized by:
Long service life Light weight Compact size & design Massive lifting capacity Easy-to- install.
